I draw visuals in order to understand concepts. Sometimes friends have found these helpful, so I thought I'd make them public.

These are raw notes from when I was learning each subject (sometimes many many years ago!), so they could be wrong! If you have a question about something, feel free to ask.

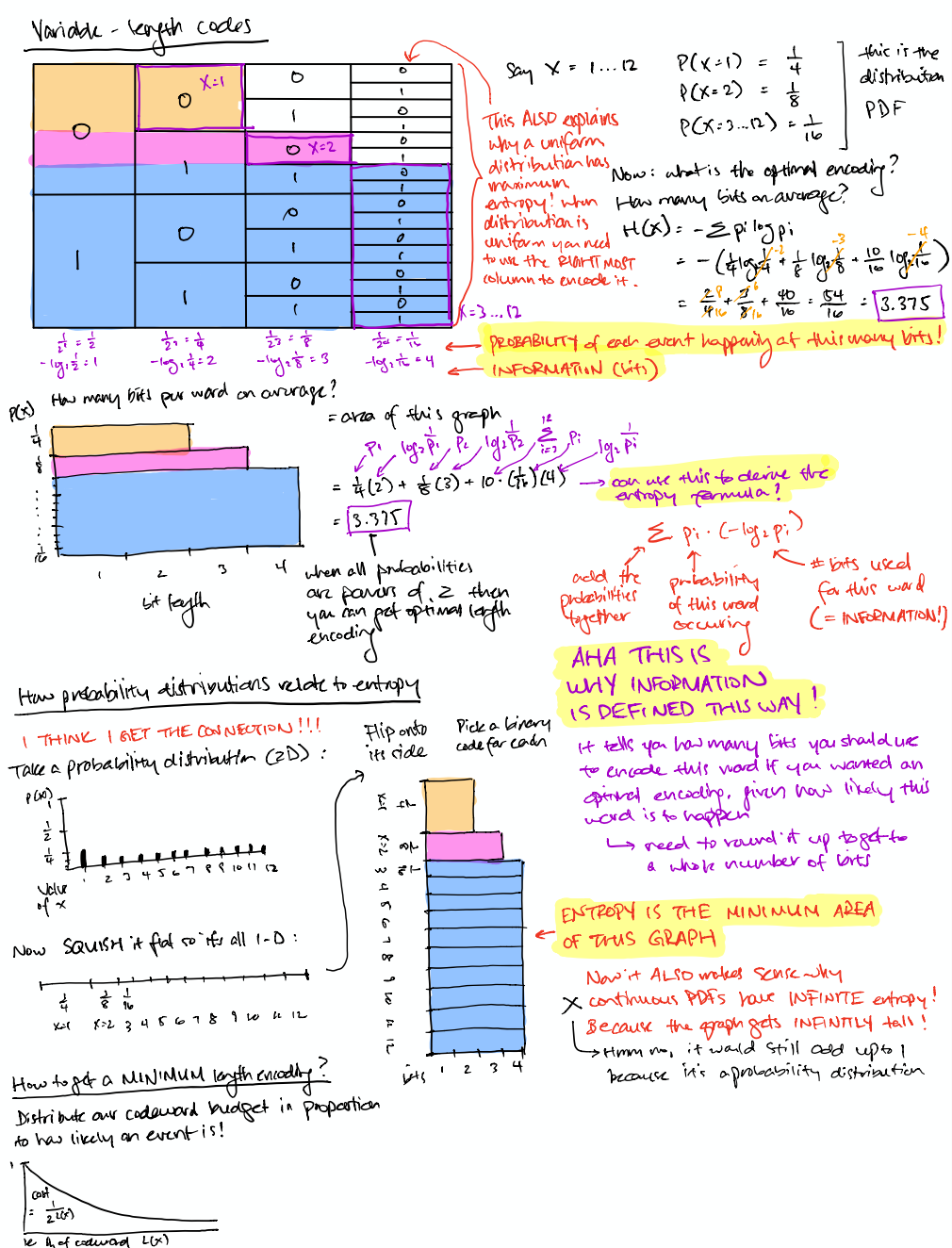

How probability distributions relate to information & entropy

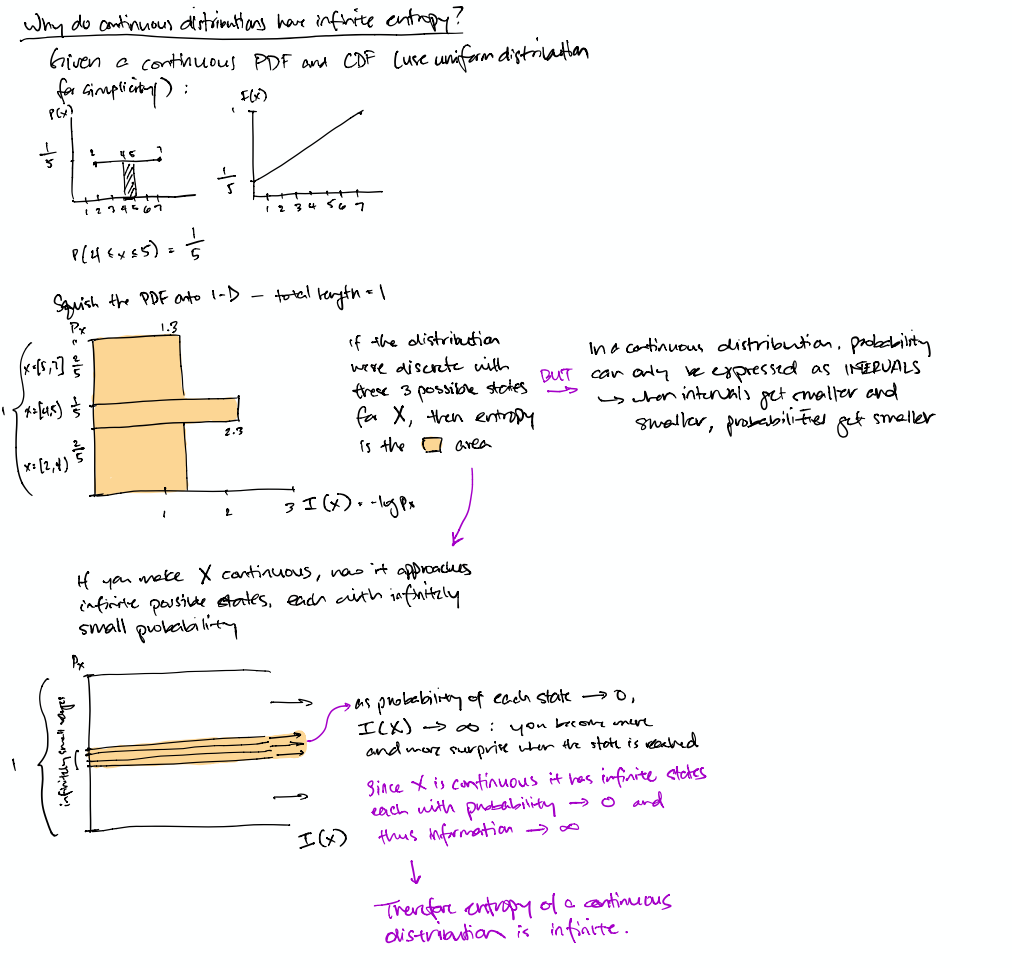

Why continuous distributions have infinite entropy


Conditional entropy

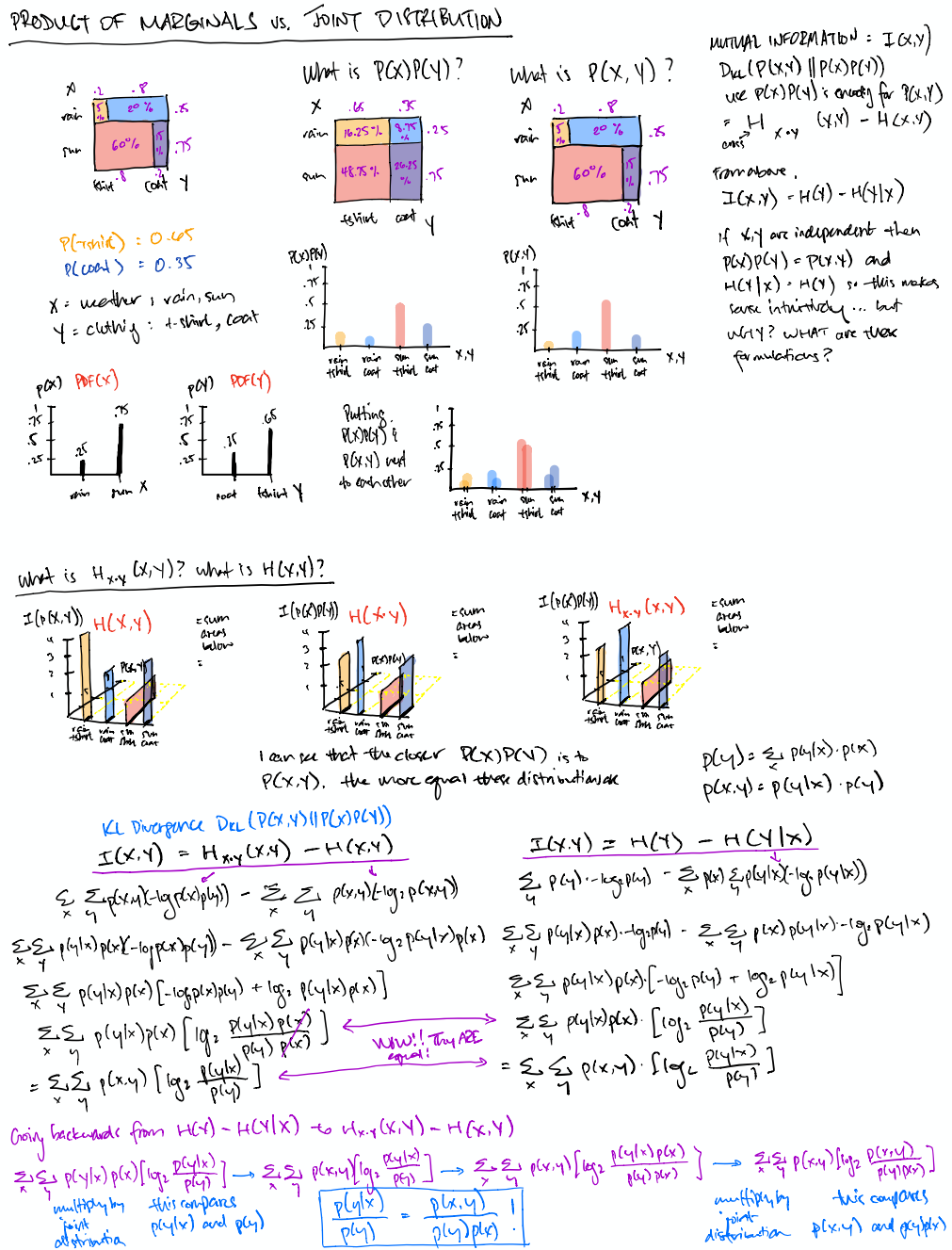

That moment when it clicks why KL divergence between P(X,Y)P(X,Y) and P(X)P(Y)P(X)P(Y) equals mutual information I(X,Y)I(X,Y)! Thanks to Chris Olah for the rain/sun coat/no coat joint distribution example shown here.
